QY-P070C1C2
Box Weight: 1KG
Pad size: 192.6mm * 126.4mm * 36mm
CPU: RK3288 Quad-Core Processor, 1.8GHz frequency
GPU: Mali-T764
RAM: 2GB DDR3
| параметры | |||
|---|---|---|---|
| Box Weight | 1KG | Pad size | 192.6mm * 126.4mm * 36mm |
| CPU | RK3288 Quad-Core Processor, 1.8GHz frequency | GPU | Mali-T764 |
| RAM | 2GB DDR3 | VPU | Support 4K 10BITS H265 / H264 Video Decoding, 1080P multi-format video decoding (VC-1, MPEG-1/2/4, VP8), 1080P video encoding, support H.264, VP8 format |
| Flash | 8GB eMMC(16GB/32GB Opt.) | Ethernet | 1*10/100Mbps |
| UART | 1*UART-TTL, 2*RS232(Opt.), 1*RS485(Opt.) | USB | 4*USB 2.0 Host, 1*USB 2.0 OTG |
| Audio | 8Ω 2W Speaker | Wi-Fi/BT | 2.4GHz Wi-Fi, support BT4.2 |
| Power Supply | DC+12V/3.3A | Operating System | Android5.1/Android7.1 |
| Power Consumption | 10W | Operating Temperature | -10℃~+60℃ |
| Working Humidity | 5% ~ 95%, Non-condensing | Storage temperature | -20℃ ~ +70℃ |
| 4G | Supports 4G CAT 1/CAT4 all network connectivity (optional) | SIM Card | 1*Standard SIM Card |
| LED | 1*Power Indicator, 1*System Idicator | Headphone interface | 3.5mm Headphone Socket |

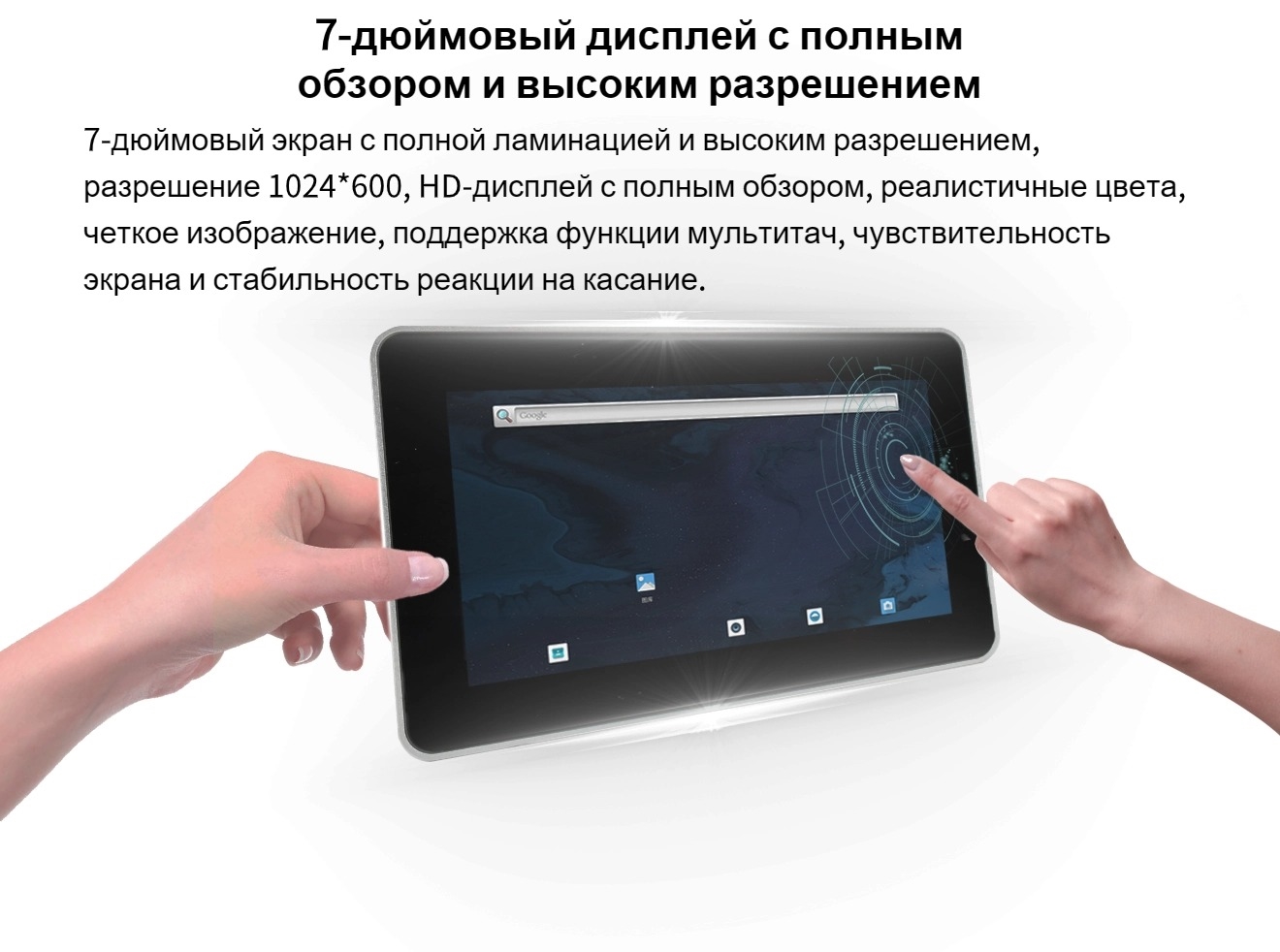

| Resolution Ratio | 1024*600 | Touch Screen | Capacitive Touch Screen |
| Brightness | 500CD/M2 | Perspective | Full View |
| Shell Material | Galvanized Plate + Aluminum Alloy | Panel Size | 7 inch |
| Protective level | IP50 | Installation Method | Embedded, Wall Mount, Bracket |
